octalink crankset removal - the solution

I noticed that local readers and from faraway lands visiting this humble bike blog are looking for solution on a problem posed by Shimano: how to remove octalink crankset.

You need a special tool for it. Shimano's TL-FC15.

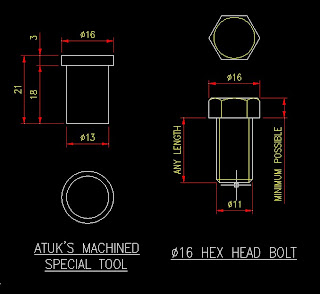

If you don't have it, you can machine it yourself. Atuk from Seri Alam did just that. I borrowed from him to remove my LX crankset. My problem solved.

We are not fortunate enough like Atuk, having a lathe machine at his workplace to machine bike parts during lunch hours. Heck, he also machined a metal bashguard for himself. That's another story altogether of course.

Rejoice, everyone, for we have the help of engineering marvel. And hardware stores.

You can use a bolt in lieu of the special tool. Okay, you can shout 'yay!' now.

Yes, a bolt. No, not that Disney's dog. Just a humble bolt from your local hardware store.

Go find yourself a bolt with the head diameter of about Ø16mm. No bigger, and not much smaller. Also take note that the height of the bolt head should be as minimum as possible. Height of about 13mm would render it useless - you would not be able to screw in the crank removal tool onto the crank thread.

I hope this helps. If it does, do come back here and tell us your story (in less than 100 words). This tip was given by BC Kelolo many moons ago.
